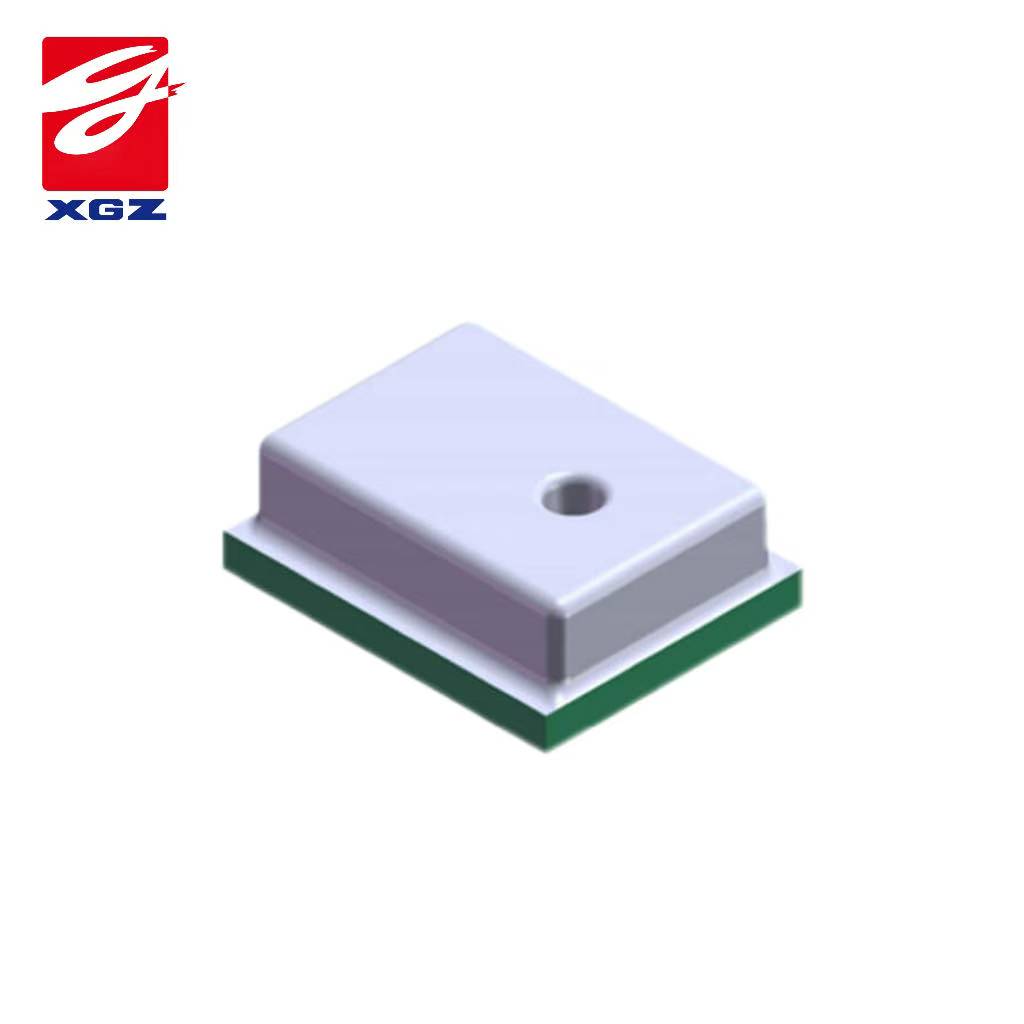

GZP6806D Pressure Sensor
Product Description
GZP6806D is a miniaturized digital gas pressure sensor with high accuracy and low current consumption, which has both pressure and temperature measurement characteristics. The output of air pressure and temperature data is 24-bit data, and the embedded digital signal processor can obtain air pressure temperature values through simple operations; it supports I2C and SPI communication methods; it has an interrupt function, and the interrupt trigger type can be selected according to the configuration; it has a maximum storage of 32 data. FIFO.
Product Features
Air pressure range 300 ... 1100hPa
Temperature range: -40...+85°C
Power supply voltage: 1.7~ 3.6V (VDD), 1.2~3.6V (VDDIO)
Absolute pressure accuracy: ±1hPa (300 ... 1100hPa, @25℃)
Relative pressure accuracy: ±0.12hPa
Temperature accuracy: ± 1.0°C. ( @25℃)
Power consumption: high accuracy (P_OSR 64X): 26 µA, low power consumption (P_OSR 1X): 3 µA, standby current: <100 nA.
Product size: 2.5*2.0*0.95mm
IIC/SPI Communication
FIFO: 32 data can be stored.
Application Field
UAVs, meteorological stations, navigation
Sports wearable equipment
Mobile devices such as mobile phones
Clocks and household appliances
Monitors, oxygen generators and other medical equipment
Portable and fixed pressure gauges
