High precision and high reliability! Sencoch GZC6800A Hall current sensor chip is newly launched

In industrial control, new energy, communication power supply and other application scenarios, the accuracy and reliability of current detection directly affect the performance and safety of the system. Wuxi Sencoch Technology Co., Ltd. (hereinafter referred to as "Sencoch") has been cultivating sensing technology for many years and launched the GZC6800A high-precision hall current sensor chip. With excellent performance parameters, a wide range of adaptation scenarios and reliable domestic quality, it brings new solutions to current detection applications!

Core advantages:

✅ High-precision measurement
Nonlinear error: ±0.5%
Total output error: ±1.2% (25℃)
Zero current error: ±5mV (25℃)

✅ Fast and dynamic response
Response time: 1.2μs
Frequency band width: 300kHz
Delay time: 0.5us

✅ Stable operation in the wide temperature area
Working temperature: -40℃ ~ +125℃
The sensitivity error in the full temperature zone is less than ±2.5%

✅ High electrical isolation
Insulation strength: 3000Vrms
Surge voltage: 6000Vdc
Climbing distance: 4.2mm
Meet IEC61010, IEC61326 and other industry standards

✅ Flexible range selection
Provide multi-speed electric flow range from ±5A to ±50A to meet the needs of different application scenarios.

Typical application
Current detection of low-power frequency converter
Motor phase and rail current detection
Current detection of string photovoltaic inverter
Chargers and adapters
DC power supply and uninterruptible power supply (UPS)

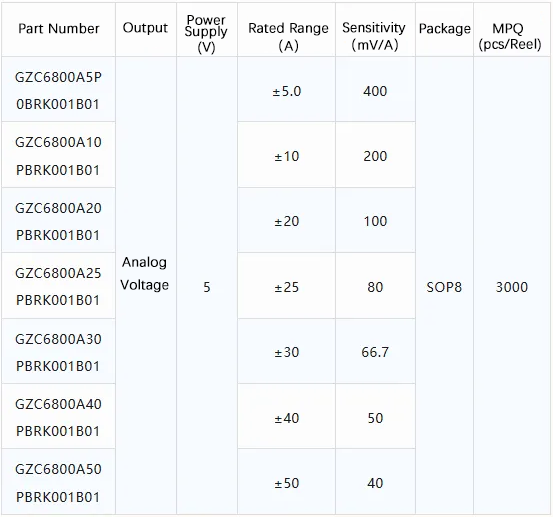

Encapsulation and selection

The GZC6800A high-precision Hall current sensor chip independently developed by Sencoch breaks the foreign monopoly with full-link independent design and production technology and provides customers with stable and reliable domestic alternatives.

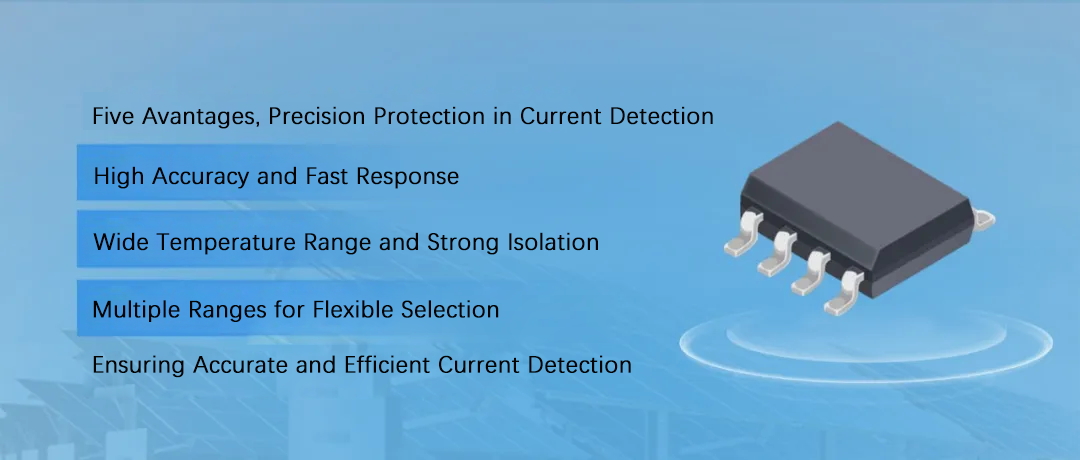

The product adopts standard SOP8 packaging, supports ±5A~±50A multi-speed current flow range, with high precision, low temperature drift, fast response and other characteristics, suitable for industrial control, new energy, intelligent home appliances and other scenarios. At the same time, it supports flexible parameter customization to maximize the actual needs of customers.

From design to mass production, Sencoch always takes customers as the core and provides all-round technical support.
Always perfect under pressure.
Sencoch, continue to inject reliable sensing power into the industry

Samples of Sencoch GZC6800A Hall current sensor chip can be provided. If you need to apply for samples or order, you can send an email to info@sencoch.com. For more information, please visit www.sencoch.com.
