Product Description

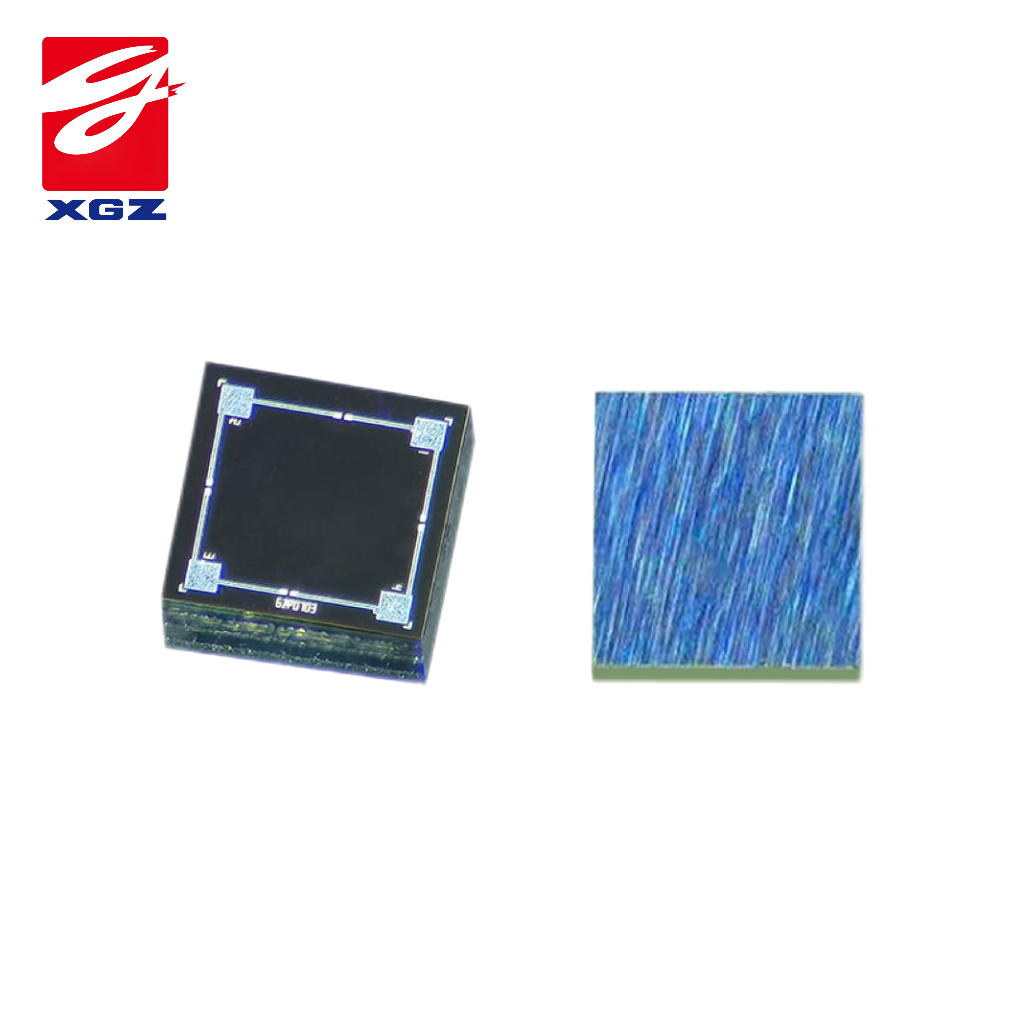

GDP0703: Silicon Piezoresistive Sensor (Absolute Type）

Sensor Attribute	Attribute Value
Product Category	Pressure Sensor Die
Product Series	GDP0703
Chip Type	Silicon Piezoresistive Sensor(Absolute Type)
Pressure Range	100/700/2000kPa
Output Type	Analog mV output
Offset Output Value	-20～20mV
FS Output Value	40～120mV (Based on pressure range)
Bridge Resistance	-4 to 6KΩ
Power Supply	≤15V or ≤3mA
Operating Temperature	-40 to 125°C
Die Size(L*W*H)	1.7x1.7x0.38mm(including Scribe Line 100μm)
QTY/Wafer	5000pcs/6''Wafer

For more details or information, please download the GDP0703 datasheet or contact us for support.
