GDP2406: Silicon Piezoresistive Sensor (Absolute Type）

Sensor Attribute	Attribute Value
Product Category	Pressure Sensor Die
Product Series	GDP2406
Chip Type	Silicon Piezoresistive Sensor (Absolute Type)
Pressure Range	1000kPa
Output Type	Analog mV output
Offset Output Value	-20～20mV
FS Output Value	-60～120mV
Bridge Resistance	-4 to 6KΩ
Power Supply	≤15V or ≤3mA
Operating Temperature	-40 to 180°C
Die Size(LWH)	2.4x2.4x0.62mm(including Scribe Line 100μm)
QTY/Wafer	2090pcs/6''Wafer

For more details or information, please download the GDP2406 datasheet or contact us for support.

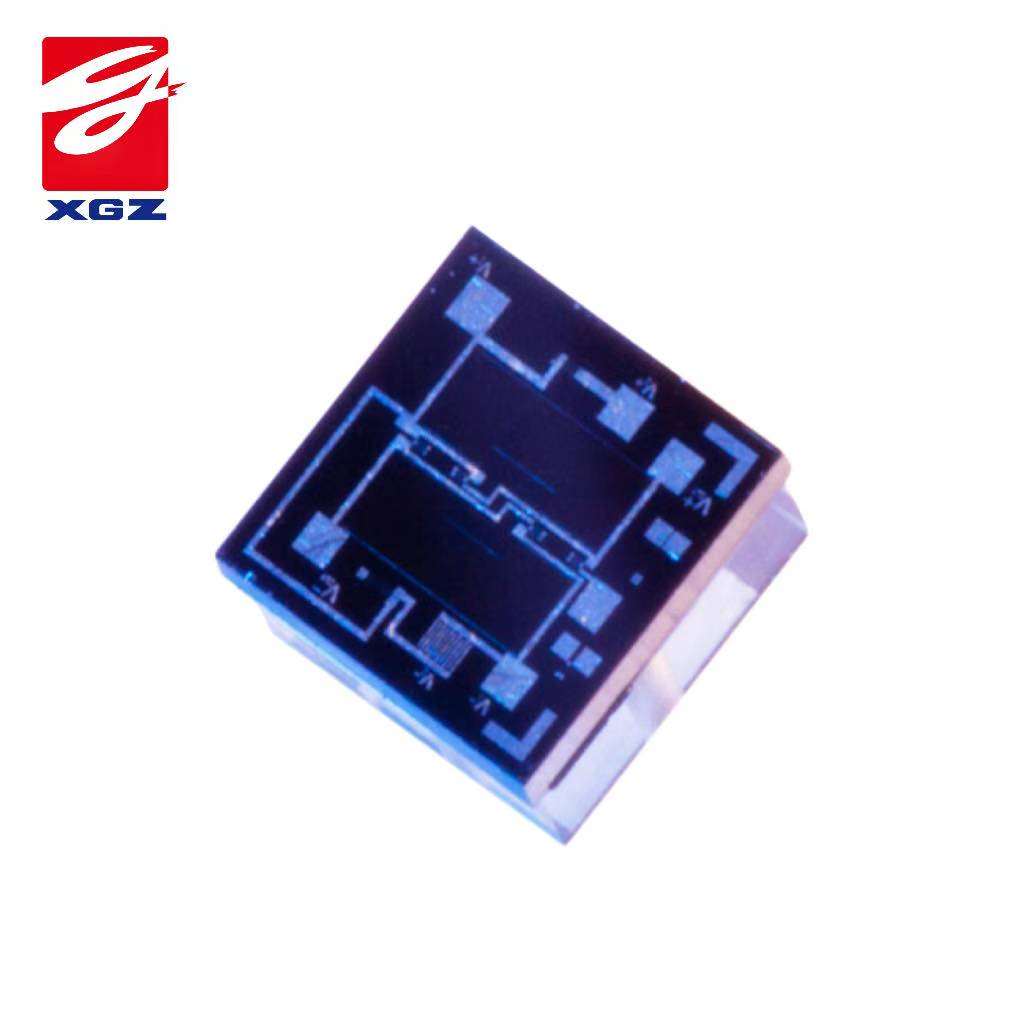

GDP2406: SOI Pressure Sensor Wafer for Instruments and Metres,1000kPa
