GZP6877A:Piezoresistance Pressure Sensor，-100…0～350…1000kPa, 0.5-4.5@5V/0.2-2.7@3.3V

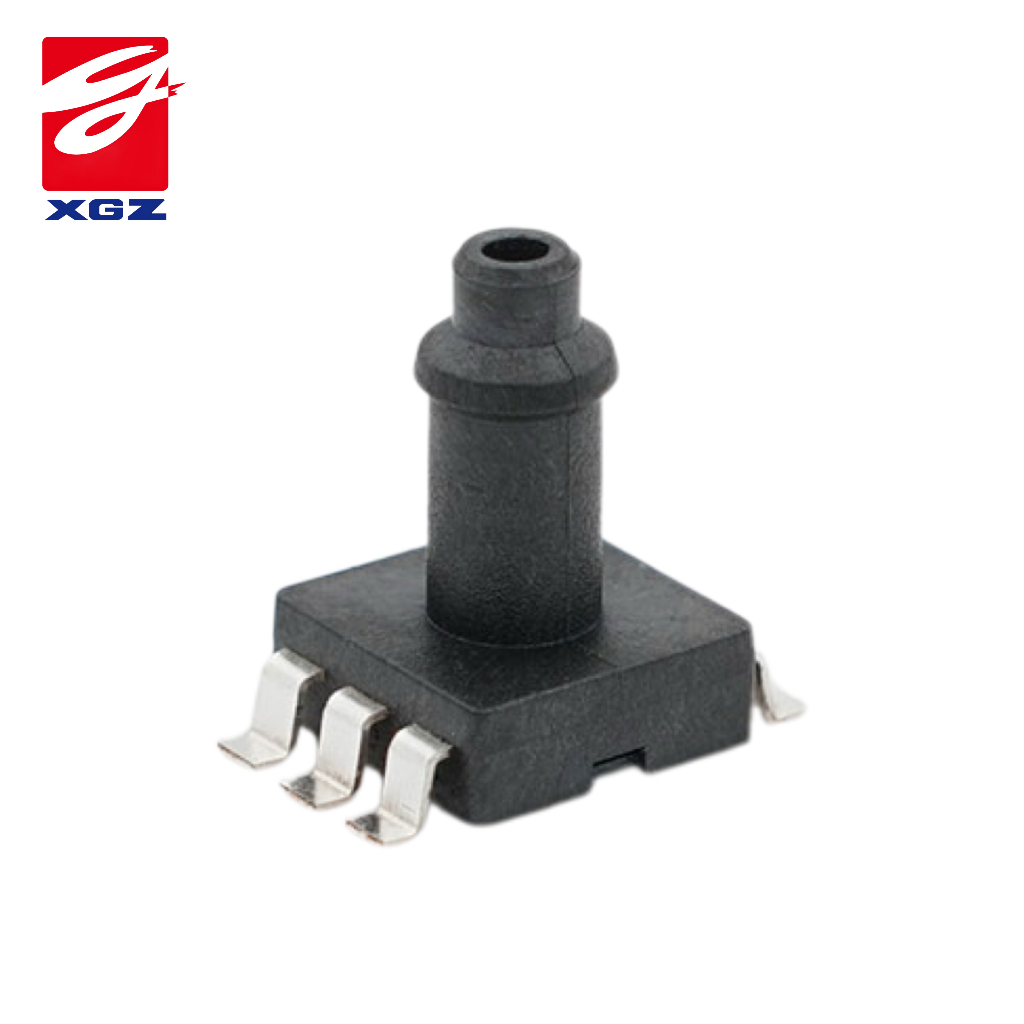

GZP6877A: Amplified Pressure Sensor, Gauge Pressure Typev

Sensor Attribute	Attribute Value
Product Category	Board Mount Pressure Sensors
Product Series	GZP6877A
Pressure Type	Gauge Pressure (Postive and Negative Pressure)
Pressure Range	-100…0～350…1000kPa (Multiple range)
Output Type	Analog Amplified Voltage
Output Value	0.5～4.5V or 0.2～2.7V or Customized by request
Accuracy	±1%FSS
Supply Voltage	5Vdc or 3.3Vdc
Temperature Compensated	0～60°C
Operating Temperature	-30 to 105°C
Mounting Style	SMD/SMT or Manual Soldering
Measured Media	Non-corrosive gases
Package/SPQ	Tube/58pcs

For more details or information, please download the GZP6877A datasheet or contact us for support.
