GZP6887A:ntegrated Silicon Pressure Sensor Standard/Proportional Voltage Output，-100...0～7...200kPa

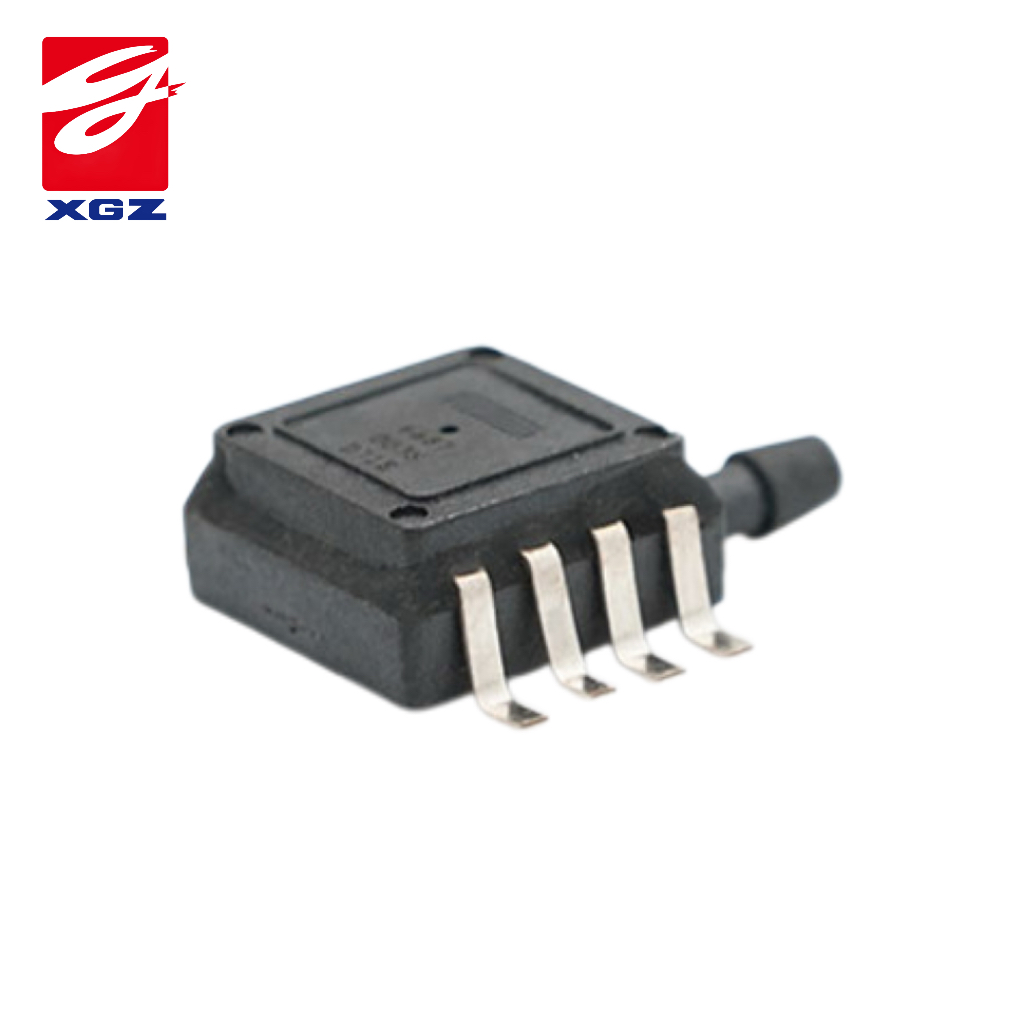

GZP6887A: Amplified Pressure Sensor, Gauge Pressure Type

Sensor Attribute	Attribute Value
Product Category	Board Mount Pressure Sensors
Product Series	GZP6887A
Pressure Type	Gauge Pressure (Postive and Negative Pressure)
Pressure Range	-100...0～7...200kPa (Multiple range)
Output Type	Analog Amplified Voltage
Output Value	0.5～4.5V or 0.2～2.7V or Customized by request
Accuracy	±1%FSS
Supply Voltage	5Vdc or 3.3Vdc
Temperature Compensated	0～60°C
Operating Temperature	-30 to 105°C
Mounting Style	SMD/SMT or Manual Soldering
Measured Media	Non-corrosive gases
Package/SPQ	Tube/26pcs

For more details or information, please download the GZP6887A datasheet or contact us for support.
